Head to head
Brother CS7000X vs XR9550
One of these two publishes what is in the box and how fast it sews. The other has two and a half times the stitch library. They are not competing for the same buyer.
Heads up: the buy links on this page are affiliate links. If you buy through one we earn a commission at no extra cost to you. It does not change what we recommend or the order we rank things in - here is how we keep those separate.
The short answer
Quilting: the CS7000X, because it names its walking foot. Sewing and lettering: the XR9550.
Brother publishes 70 stitches, 750 spm, 10 itemized feet including a walking foot and a quilting foot, a quilt guide, a wide table and 10.5 lb for the CS7000X.
For the XR9550 it publishes 165 stitches including 55 alphanumeric characters, one lettering font, 8 presser feet it does not name, a wide table and hard case, and 10.14 lb - with no maximum sewing speed at all.
Side by side, on published figures only
| Specification | CS7000X | XR9550 |
|---|---|---|
| Built-in stitches | 70 | 165 (55 alphanumeric) |
| Built-in lettering fonts | 0 | 1 |
| Buttonhole styles | 7 | 8 |
| Maximum sewing speed | 750 spm | Not published |
| Presser feet | 10, all named | 8, none named |
| Walking foot named? | Yes | No |
| Free Motion Quilting Foot row | Yes | No row published |
| Quilt guide | Yes | Not named |
| Wide table | Yes | Yes |
| Hard case / cover | Yes | Yes |
| Unit dimensions | 12.2 x 6.65 x 16.26 in | 16.26 x 7.01 x 12.48 in |
| Weight | 10.5 lb | 10.14 lb |
| Knee lifter | No | No row published |
| Needle-to-arm space | Not published | Not published |
Note the dimensions rows. Both machines publish a 16.26 in figure - the CS7000X lists it third, the XR9550 lists it first, and neither page labels which axis is which. Brother publishes three numbers and leaves you to guess the order, which is the same problem the home-use page runs into across its whole range.
The one difference that decides it for quilting
A walking foot feeds all three layers of a quilt sandwich at the same rate. Without one the top layer creeps and you get tucks on the back. It is the single most important accessory for machine-guided quilting.
Brother names a walking foot in the CS7000X carton. For the XR9550 it publishes “Number of Presser Feet: 8” and then lists the carton contents - bobbins, needles, seam ripper, brush, eyelet punch, screwdriver, spool caps - without naming a single foot. So you cannot confirm the walking foot is there, and we will not assume it is.
That, plus the missing speed row, is why the XR9550 sits below the CS7000X for quilting on the Brother quilting range page despite being the more capable sewing machine.
The one difference that decides it for everything else
165 stitches against 70, and 55 of the XR9550’s are alphanumeric characters with a built-in font behind them. The CS7000X publishes zero lettering fonts.
What the stitch gap is actually made of
XR9550: 165 stitches, of which 55 are alphanumeric. So 110 are sewing stitches.
CS7000X: 70 stitches, 0 alphanumeric.
Strip out the lettering and the real gap is 110 against 70 - still a 57% larger library, but less dramatic than 165 against 70 looks.
Whether the lettering is worth anything depends entirely on whether you label quilts. If you do, it is the only reason on this page to prefer the XR9550, and it is a good one.
Weight, and the one figure the XR9550 wins outright
10.14 lb against 10.5 lb. Both are published, both include a hard case, and the XR9550 is the lightest machine on this entire site. The difference is under half a pound - real, but not a reason to choose on its own. If portability is the actual constraint, the portable roundup covers the machines that publish both a weight and a footprint.
Skip this
Skip both if you want the stitch library and a published speed
The HC1850 has 185 stitches including the same 55 alphanumeric characters, a monogramming font, and a published 850 spm - the fastest figure in this tier. It costs more, weighs 13.2 lb, and publishes its free-motion foot as Optional rather than included. HC1850 review.
The short version
CS7000X if quilting is the job: it names the walking foot, the quilting foot, the piecing foot and the quilt guide, and it publishes a speed. Full review.
XR9550 if garments and lettering are the job: 165 stitches, a font, 10.14 lb, a hard case. Full review.
Neither if the opening is the reason you are shopping - neither publishes one, and the PQ1600S does.
The picks
Both machines, and the one that has most of both
Brother
Brother CS7000X
Entry domestic tier
The cheapest machine Brother puts the word quilting on, and it earns part of it: a walking foot, a quilting foot, a quilt guide and a wide table are all in the box. What is not in the specification is a needle-to-arm figure - Brother publishes none for this machine, which is the one number quilting actually turns on.
Skip it if: You are quilting anything bigger than a throw. Brother publishes 750 spm and no throat figure here, against 1,500 spm and 8.7 in on the PQ1600S.
#ad Price as of October 18, 2026, from Amazon. Prices change. How this site is funded.
Brother

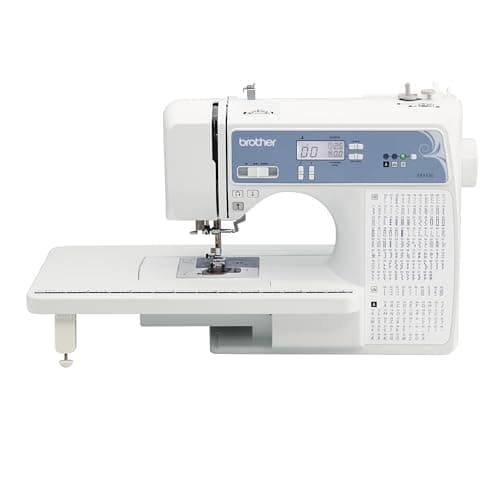

Brother XR9550
Entry domestic tier
165 stitches including 55 alphanumeric characters, a lettering font, a wide table and a hard case, at the lightest published weight of any machine on this site - 10.14 lb. It is the stitch-library answer at this tier rather than the quilting answer.
Skip it if: Quilting is the main reason you are buying. Brother publishes neither a throat figure nor a sewing speed for this machine, and does not itemize the included feet.
#ad Price as of October 18, 2026, from Amazon. Prices change. How this site is funded.
Brother

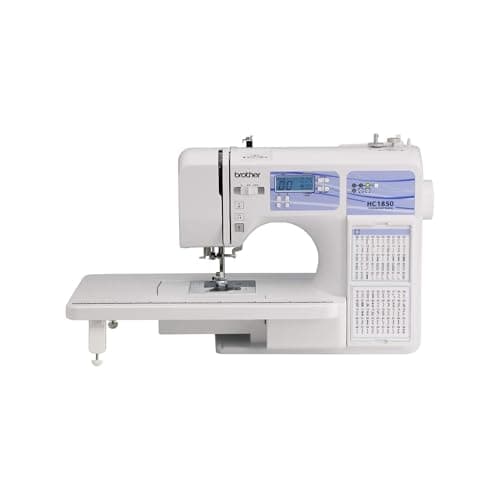

Brother HC1850
Entry domestic tier
185 stitches, 170 stitch functions, a monogramming font and a published 850 stitches per minute - the fastest figure Brother publishes for any of its quilting-marketed domestic machines. The free-motion quilting foot is published as Optional, which means it is not in the box.
Skip it if: You want free-motion quilting out of the box. Brother publishes that foot as Optional here and Included on the CS7000X and XR3774.
#ad Price as of October 18, 2026, from Amazon. Prices change. How this site is funded.
How this was ranked
Machines we claim to have tested: none. Everyone in this category says they tested twenty. We have not tested any, and we say so. What we did instead: built the candidate set from what Amazon actually stocks, read the published specification off each manufacturer’s own page, normalized every measurement into the same units and the same order, did the arithmetic on what each step up buys, and left every figure the maker does not publish visibly blank rather than filling it in. Every number on this page links to where it was published, so you can check the work in about five minutes.
- Sponsored placements
- 0
- Free machines accepted
- 0
- Specs linked to a maker page
- All
Questions people actually ask
Frequently asked
Is the Brother CS7000X or XR9550 better for quilting?
The CS7000X. Brother names a walking foot, a quilting foot, a quarter-inch piecing foot and a quilt guide in its carton and publishes 750 spm. For the XR9550 it publishes a count of 8 presser feet without naming any of them and no sewing speed at all.
Which has more stitches, the CS7000X or the XR9550?
The XR9550, by a wide margin: 165 against 70. But 55 of the XR9550’s are alphanumeric characters, so on sewing stitches alone it is 110 against 70. The XR9550 also publishes one lettering font where the CS7000X publishes zero.
How fast is the Brother XR9550 compared with the CS7000X?
Unknown. Brother publishes 750 stitches per minute for the CS7000X and publishes no maximum sewing speed for the XR9550 at all. Four of the five machines Brother markets as sewing and quilting machines publish a speed; the XR9550 is the exception.
Which is lighter?
The XR9550, at a published 10.14 lb against 10.5 lb. It is the lightest published weight of any machine on this site, and a hard case is included - though so is one with the CS7000X.
