Head to head
Brother CS7000X vs CP100X
Two machines, one set of published dimensions to the hundredth of an inch. This comparison is about the four rows where the spec sheets actually diverge.
Heads up: the buy links on this page are affiliate links. If you buy through one we earn a commission at no extra cost to you. It does not change what we recommend or the order we rank things in - here is how we keep those separate.
The short answer
Buy whichever is cheaper on the day. If they are level, the CP100X - it publishes more.
Brother publishes 12.2 x 6.65 x 16.26 in, 10.5 lb and 750 stitches per minute for the CS7000X, and the identical three figures for the CP100X. Same chassis, same weight, same feed rate.
The CP100X adds 30 more stitches, one more buttonhole style, a published metal frame and a fixed needle bar. The CS7000X’s advantage is a spec sheet with fewer blanks in it.
Every row where they differ
| Specification | CS7000X | CP100X |
|---|---|---|
| Built-in stitches | 70 | 100 |
| Buttonhole styles | 7 | 8 |
| Maximum sewing speed | 750 spm | 750 spm |
| Unit dimensions | 12.2 x 6.65 x 16.26 in | 12.2 x 6.65 x 16.26 in |
| Weight | 10.5 lb | 10.5 lb |
| Maximum stitch width / length | 7 mm / 5 mm | 7 mm / 5 mm |
| Frame | Not published | Durable metal frame |
| Needle bar | Not published | Fixed in place while you work |
| Free Motion Quilting Foot row | Yes | No row published |
| Walking foot named in carton | Yes | Yes |
| Quarter-inch piecing foot | Yes | Yes |
| Quilt guide | Yes | Yes (quilting guide) |
| Wide table | Yes | Yes |
| Hard case | Yes | Yes |
| Knee lifter | No | No |
| Needle-to-arm space | Not published | Not published, but marketed as large |
Sixteen rows, four real differences: stitch count, buttonhole count, the frame claim and the needle bar claim. Everything a quilter checks is either identical or missing on both.
The marketing row worth reading carefully
The CP100X page carries a feature heading reading “LARGE NEEDLE-TO-ARM WORKSPACE” and body text promising “increased width in needle-to-arm space” for larger projects including quilts. The CS7000X page makes no such claim.
How much larger can it be?
Both machines publish 12.2 x 6.65 x 16.26 in and 10.5 lb. Identical on every axis Brother measures.
So any extra needle-to-arm width on the CP100X has to come from moving the internals inside the same shell. That is possible, but it bounds how big the difference can be - it cannot be an inch, because the machine is not an inch bigger.
Neither page publishes the figure, so the honest conclusion is: unknown, and small. If the opening is what you are buying, neither of these is the machine.
Where the CP100X wins
100 stitches and 8 buttonhole styles. Thirty stitches and one buttonhole style more than the CS7000X, at the same size and speed.
A published metal frame. Brother says it “allows your machine to tackle any project ranging from thick denim to heavy quilts.” The CS7000X page makes no frame statement at all, which at this tier is worth noticing.
A fixed needle bar. Published as giving “cleaner stitching and even lines.” For quarter-inch piecing that is the right design.
Where the CS7000X wins
It fills in the free-motion row. “Free Motion Quilting Foot: Yes” appears on the CS7000X sheet. The CP100X sheet has no such row - although its in-box list does include a quilting foot, so this is probably a documentation gap rather than a missing part. On a page about what is published, a filled row beats an absent one.
It is the one people search for. Not a specification, but it means street prices move around more often, and the CS7000X is frequently discounted below the CP100X. Check both.
What neither of them does
Neither publishes a needle-to-arm figure. Neither has a knee lifter. Both run at 750 spm, the joint-slowest in Brother’s quilting-marketed range. For any quilt bigger than a throw the relevant machine is the PQ1600S, which publishes 8.7 x 5.7 in of opening, 1,500 spm and a knee lifter, and sews exactly one stitch in exchange.
Skip this
Skip both if you already own a general-purpose machine
These two are first machines - they earn their money by doing garment sewing, mending and quilting adequately from one footprint. If you already own something that sews, the money belongs on a published opening instead. Brother’s whole quilting range is sorted on that basis, and the straight-stitch roundup covers the tier above across all three brands.
The short version
CP100X if prices are level or it is cheaper: more stitches, a metal frame, a fixed needle bar, nothing lost.
CS7000X if it is discounted below the CP100X, which happens often.
Neither if you are buying for the opening. Full write-ups: CS7000X review and CP100X review.
The picks
Both machines, and the one that publishes an opening
Brother
Brother CS7000X
Entry domestic tier
The cheapest machine Brother puts the word quilting on, and it earns part of it: a walking foot, a quilting foot, a quilt guide and a wide table are all in the box. What is not in the specification is a needle-to-arm figure - Brother publishes none for this machine, which is the one number quilting actually turns on.
Skip it if: You are quilting anything bigger than a throw. Brother publishes 750 spm and no throat figure here, against 1,500 spm and 8.7 in on the PQ1600S.
#ad Price as of October 18, 2026, from Amazon. Prices change. How this site is funded.
Brother

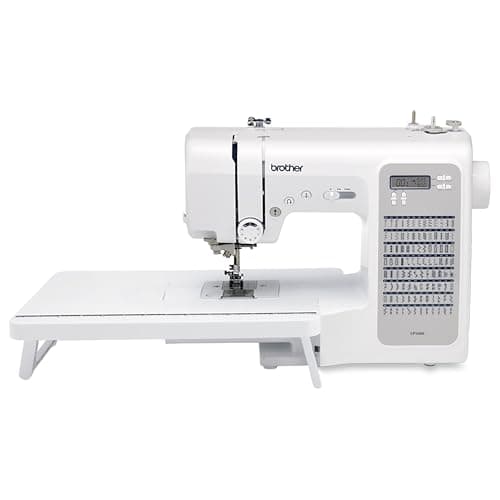

Brother CP100X
Entry domestic tier
100 stitches, a metal frame, a fixed needle bar and a box containing a quarter-inch piecing foot, a walking foot, a quilting foot and a quilting guide. Brother also advertises it on a “large needle-to-arm workspace” and publishes no figure for it anywhere on the page.
Skip it if: You need to know how much room is under the arm before you buy. Brother makes the claim here and does not publish the number.
#ad Price as of October 18, 2026, from Amazon. Prices change. How this site is funded.
Brother
Brother PQ1600S
Semi-professional straight-stitch tier
8.7 in of throat width - wider than either Juki TL - with a published 11.1 x 23.3 in extension table and 1,500 spm. It trades 0.3 in of height for 0.2 in of width against the Juki, and adds a pin feed system the Juki has no equivalent for.
Skip it if: You want one machine to do everything. Like the Jukis, this is straight stitch only.
#ad Price as of October 18, 2026, from Amazon. Prices change. How this site is funded.
How this was ranked
Machines we claim to have tested: none. Everyone in this category says they tested twenty. We have not tested any, and we say so. What we did instead: built the candidate set from what Amazon actually stocks, read the published specification off each manufacturer’s own page, normalized every measurement into the same units and the same order, did the arithmetic on what each step up buys, and left every figure the maker does not publish visibly blank rather than filling it in. Every number on this page links to where it was published, so you can check the work in about five minutes.
- Sponsored placements
- 0
- Free machines accepted
- 0
- Specs linked to a maker page
- All
Questions people actually ask
Frequently asked
Is the Brother CS7000X or CP100X better?
On published figures the CP100X, narrowly: 100 stitches to 70, 8 buttonhole styles to 7, plus a published metal frame and fixed needle bar - at identical dimensions, identical 10.5 lb weight and identical 750 spm. The CS7000X fills in more of its spec sheet and is discounted more often, so buy whichever is cheaper.
Are the Brother CS7000X and CP100X the same machine?
Brother publishes identical unit dimensions (12.2 x 6.65 x 16.26 in), identical weight (10.5 lb) and identical maximum sewing speed (750 spm) for both, so they share a chassis. They are not the same machine: the CP100X has 100 stitches, a metal frame and a fixed needle bar; the CS7000X has 70 stitches and publishes its free-motion foot.
Does the CP100X really have a bigger workspace than the CS7000X?
Brother claims a “large needle-to-arm workspace” for the CP100X and publishes no figure for it - on either machine. Since both publish the same external dimensions to the hundredth of an inch, any difference has to be internal and cannot be large. Treat it as unknown.
Which one comes with a walking foot?
Both. Each carton list names 10 feet including a walking foot, a quilting foot and a quarter-inch piecing foot, plus a quilt guide, a wide table and a hard case. The CP100X list names the piecing foot explicitly as a quarter-inch foot.
Sources
Every specification on this page was read from one of these pages on 1 September 2026.
