Machine review
Brother XR3774 review
The only machine in Brother's quilting-marketed range with no screen of any kind - and the only one whose own page disagrees with itself about the light.
Heads up: the buy links on this page are affiliate links. If you buy through one we earn a commission at no extra cost to you. It does not change what we recommend or the order we rank things in - here is how we keep those separate.
The short answer
The least machine here and the least to learn. Both of those are the point.
Brother publishes 37 built-in stitches with 74 stitch functions and one auto-size buttonhole style, 800 stitches per minute, stitch selection by dial with “Display Type: none,” a 6-point feed dog, a free arm, unit dimensions of 12.0 x 5.8 x 15.3 in and a weight of 12.3 lb. In the box: a wide table, a darning plate, a twin needle, 4 bobbins and the usual tools.
The spec sheet also carries “Free Motion Quilting Foot: Yes” - the same row the more expensive HC1850 publishes as Optional.
A dial, and why that is a feature
Brother publishes “Stitch Selector Type: dial” and “Display Type: none.” There is no LCD, no menu and no mode-shift key. You turn a dial to a stitch and sew.
For piecing, that is most of what you need: a straight stitch, a consistent quarter inch, and reverse. Everything the computerized machines in this tier add - 70, 100, 165 or 185 stitches, buttonhole styles, alphanumerics - is sewing features, not quilting features. The CS7000X’s advantage over this machine is its accessory list, not its screen.
What you lose is a readout. Stitch width and length are dial positions, so “2.5 mm” is a mark on a scale rather than a number you can set and trust. If you want repeatable settings across sessions, that is a real cost.
800 stitches per minute
Published, and faster than either 750 spm machine in the same range. It is behind the HC1850’s 850 and well behind the 1,500 published for both PQ machines.
At a 2.5 mm stitch length, 800 spm is about 79 in of seam per minute. The practical read: this machine feeds a little quicker than the CS7000X while giving you far less control over how, because there is no readout and no adjustable presser foot pressure (published as “No”).
The quilting kit it actually ships with
Two things in the box matter here. The darning plate covers the feed dogs so the fabric moves only where you move it, which is the mechanical prerequisite for free-motion work. And the free-motion quilting foot is published as included.
Together those two make this the cheapest genuinely free-motion-ready machine Brother sells with quilting in its name - cheaper than the HC1850, which publishes that foot as Optional. What Brother does not name in the XR3774 carton is a walking foot, which the CS7000X and CP100X both name.
The accessory split across Brother's cheap tier
Free-motion foot published as included: XR3774, CS7000X.
Published as Optional: HC1850.
No row published at all: CP100X, XR9550.
Walking foot named in the carton: CS7000X, CP100X only.
So the two techniques split cleanly: this machine and the CS7000X are set up for free-motion out of the box, and only the CS7000X and CP100X are set up for walking-foot straight-line quilting.
The contradiction on its own page
Brother’s feature text for the XR3774 reads “Brightly lit LED work area.” The specification field on the same page reads “Lighting Type: Bulb.” Those cannot both be true.
We have recorded it as Bulb, because that is the specification field rather than the marketing copy, and flagged the conflict. It is a small thing that tells you how much attention these sheets get - the same lesson as the missing throat figures across the whole tier. An incandescent bulb also runs hotter and dimmer than an LED, which you notice over a long session.
Where it falls short
One buttonhole style. Every other machine in this tier publishes 7 or 8.
37 stitches, zero lettering fonts. No quilt labels from this machine.
No hard case. The CS7000X, CP100X and XR9550 all include one; this publishes a wide table and no case, at 12.3 lb.
No published opening. Same as the rest of the tier.
No automatic thread cutter, no needle position key, no start/stop button. All published as “No.”
Who should buy it
Buy it as a first machine for piecing and free-motion practice, where the appeal is that there is nothing to configure and the darning plate and free-motion foot are already in the box.
Do not buy it if you want repeatable dialed-in settings, buttonholes, lettering, or a walking foot for straight-line quilting - for the last of those the CS7000X is the cheapest Brother that names one. And as with every machine in this tier, if large quilts are the job the published opening on the PQ1600S is what you are actually buying.
The picks
The XR3774 and the two machines worth the step up
Brother

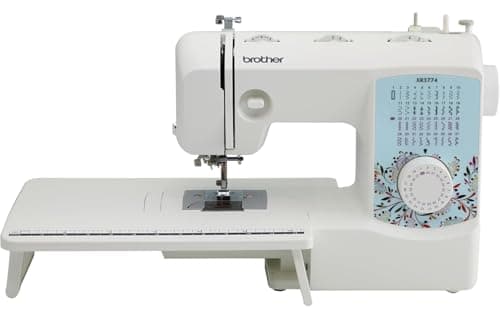

Brother XR3774
Entry domestic tier
37 stitches on a dial, no display of any kind, a published 800 stitches per minute, and both a darning plate and a free-motion quilting foot in the box. The cheapest machine Brother puts the word quilting on, and the one with the least to learn.
Skip it if: You want more than one buttonhole style or any kind of readout. This machine has a dial and no screen.
#ad Price as of October 18, 2026, from Amazon. Prices change. How this site is funded.
Brother
Brother CS7000X
Entry domestic tier
The cheapest machine Brother puts the word quilting on, and it earns part of it: a walking foot, a quilting foot, a quilt guide and a wide table are all in the box. What is not in the specification is a needle-to-arm figure - Brother publishes none for this machine, which is the one number quilting actually turns on.
Skip it if: You are quilting anything bigger than a throw. Brother publishes 750 spm and no throat figure here, against 1,500 spm and 8.7 in on the PQ1600S.
#ad Price as of October 18, 2026, from Amazon. Prices change. How this site is funded.
Brother
Brother PQ1600S
Semi-professional straight-stitch tier
8.7 in of throat width - wider than either Juki TL - with a published 11.1 x 23.3 in extension table and 1,500 spm. It trades 0.3 in of height for 0.2 in of width against the Juki, and adds a pin feed system the Juki has no equivalent for.
Skip it if: You want one machine to do everything. Like the Jukis, this is straight stitch only.
#ad Price as of October 18, 2026, from Amazon. Prices change. How this site is funded.
How this was ranked
Machines we claim to have tested: none. Everyone in this category says they tested twenty. We have not tested any, and we say so. What we did instead: built the candidate set from what Amazon actually stocks, read the published specification off each manufacturer’s own page, normalized every measurement into the same units and the same order, did the arithmetic on what each step up buys, and left every figure the maker does not publish visibly blank rather than filling it in. Every number on this page links to where it was published, so you can check the work in about five minutes.
- Sponsored placements
- 0
- Free machines accepted
- 0
- Specs linked to a maker page
- All
Questions people actually ask
Frequently asked
Does the Brother XR3774 have a screen?
No. Brother publishes “Stitch Selector Type: dial” and “Display Type: none.” Stitch width and length are dial positions rather than numbers on a readout, which makes settings quick to reach and hard to repeat exactly.
Is the Brother XR3774 good for free motion quilting?
It is the cheapest Brother that is set up for it out of the box: the spec sheet publishes “Free Motion Quilting Foot: Yes” and the carton includes a darning plate to cover the feed dogs. The more expensive HC1850 publishes that same foot as Optional.
How fast is the Brother XR3774?
Brother publishes 800 stitches per minute - faster than the 750 spm published for the CS7000X and CP100X, slower than the HC1850’s 850, and just over half the 1,500 spm published for both Brother PQ machines.
Does the Brother XR3774 come with a walking foot?
Brother does not name one. The published carton contents are a wide table, a darning plate, a twin needle, 4 bobbins, an extra spool pin, a screwdriver, the power cord and the manual. The CS7000X and CP100X both name a walking foot in theirs.
Does the Brother XR3774 have an LED light?
Brother’s own page contradicts itself: the feature text says “Brightly lit LED work area” while the specification field says “Lighting Type: Bulb.” We record the specification field, so we list it as a bulb, and we flag the conflict rather than pick the flattering version.
Sources
Every specification on this page was read from one of these pages on 1 September 2026.
